S&S Cycle 550 Cam Kit For Harley Milwaukee Eight 2017-2023

S&S 550C/G Camshaft Kit For Harley Milwaukee Eight

S&S has been in the business of making Harley-Davidson motorcycles go fast for a very long time, and their innovation in the world of cams is not exactly a secret. If you’re looking for more power from your bike, a cam is a wonderful place to start – especially if you’ve already done most of the easy ‘bolt-on’ modifications. Installing an S&S cam is a surefire way to make your mill suit your riding style while getting maximum output and reliability.

Features:

• 550 series camshaft is an ideal high horsepower cam for 114″ and larger engines. 120HP, 120Ft⋅Lb
• Excellent 114″ and larger engines
• Gear drive cams provide improved valve timing accuracy

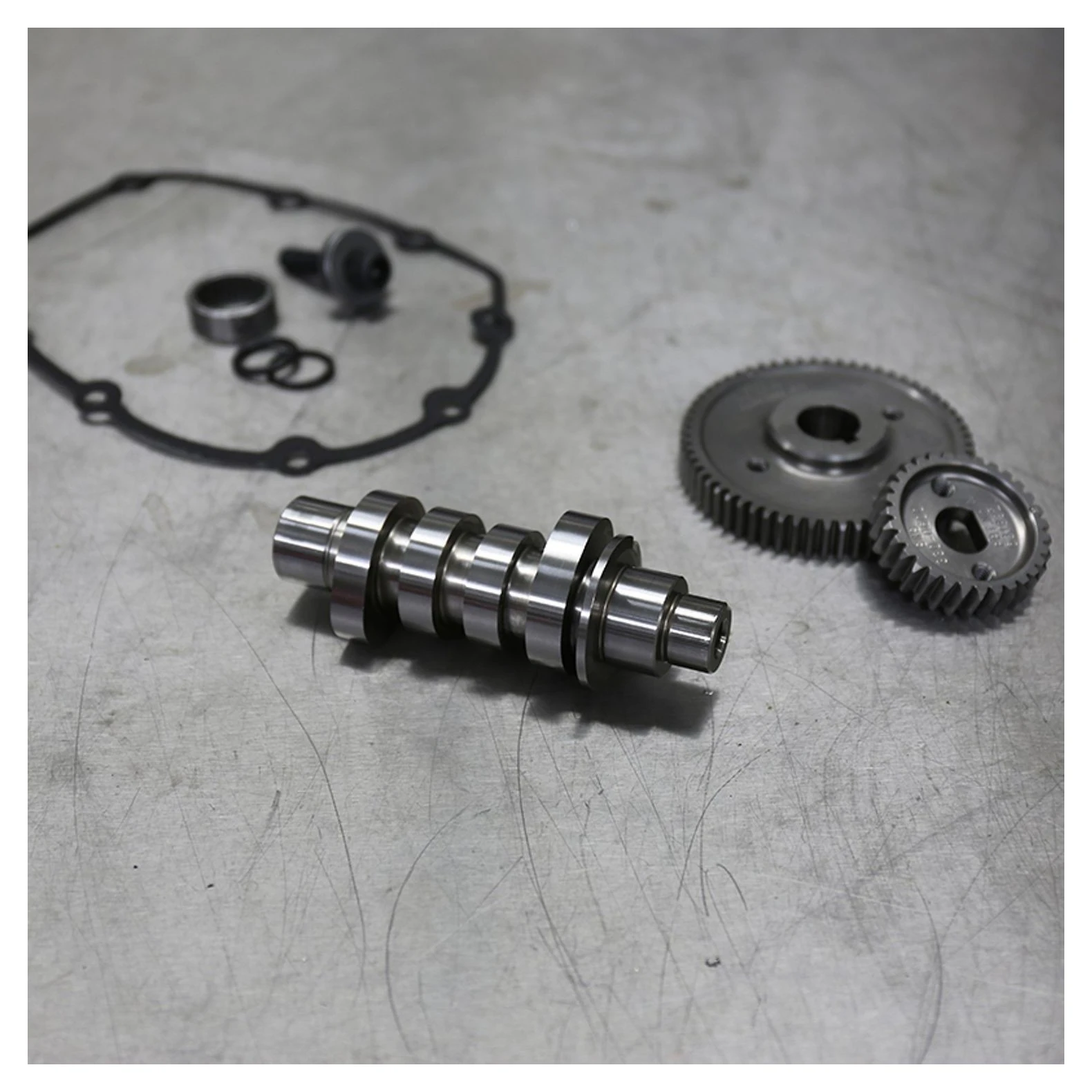

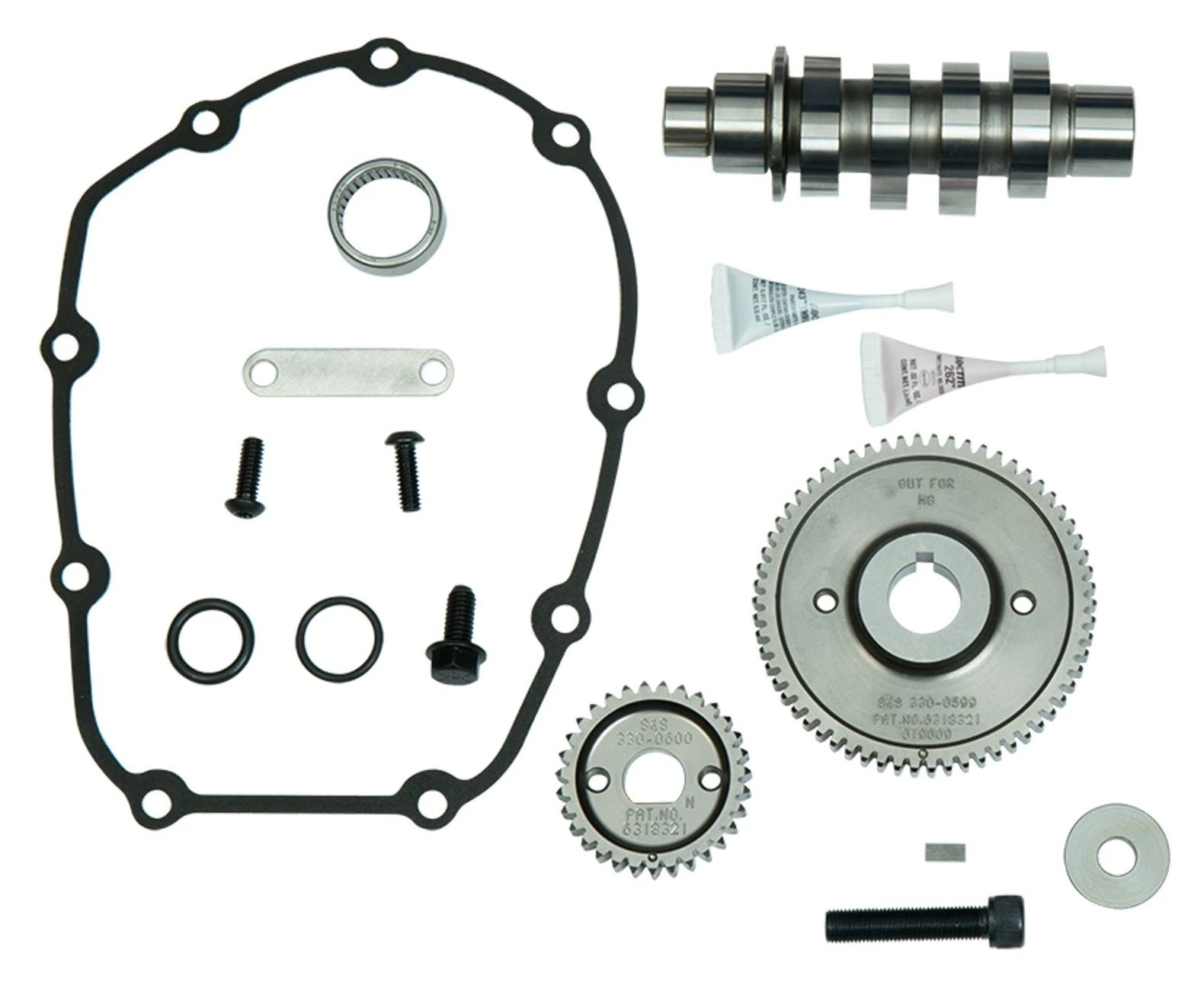

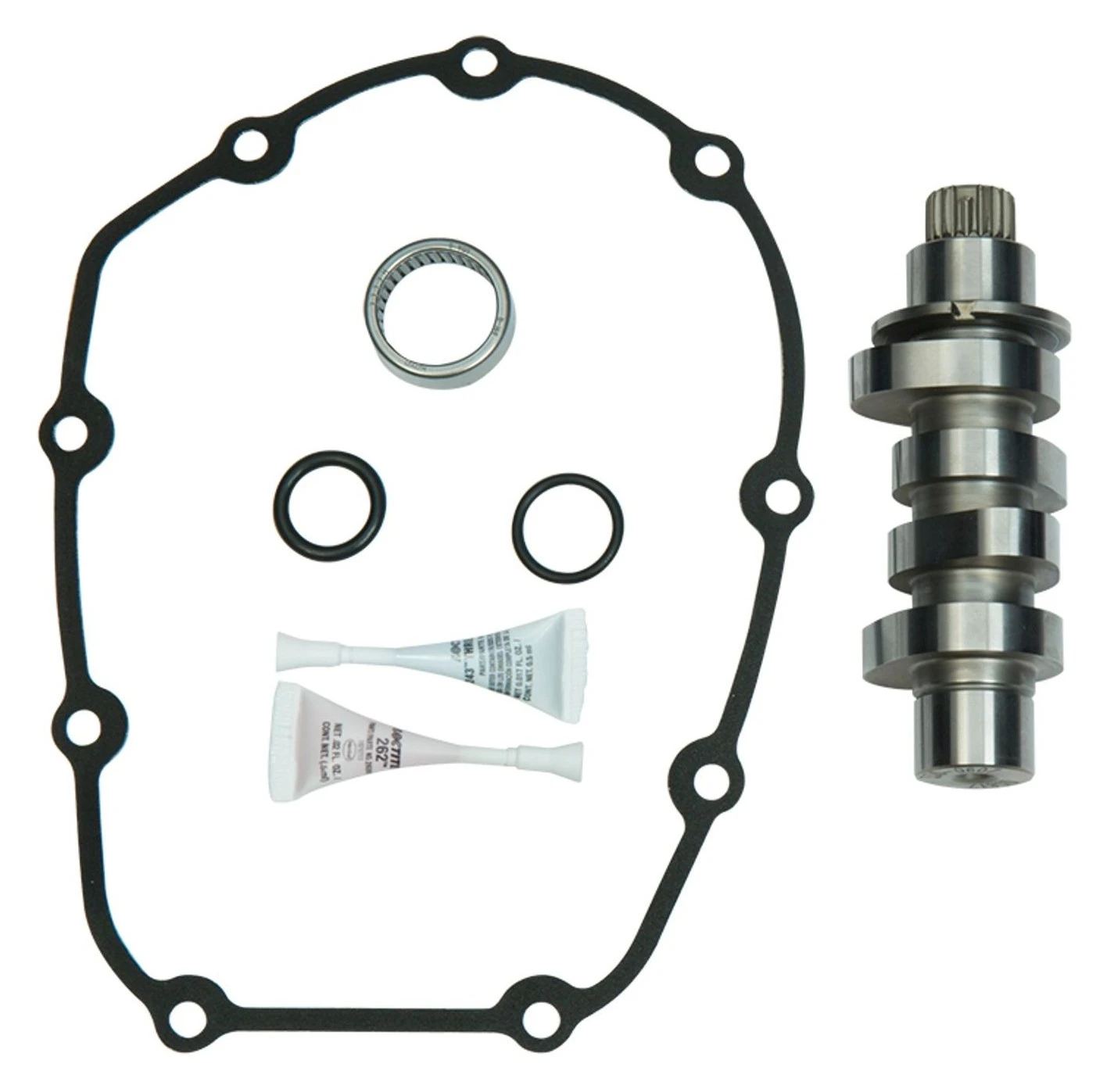

• Kits include all required bearings, o-rings and hardware
• Requires Heavy Duty Valve Spring kit for installation
• Made in the USA

550 Cam Info:

• Front Intake open/close 9.4°/29.4°
• Front Exhaust open/close 62.5°/30.5°
• Rear Intake open/close 3.1°/31.1°
• Rear Exhaust open/close 59.4°/38.4°

• Front Intake duration 218.9°
• Rear Intake duration 214.2°
• Front Exhaust duration 273.1°
• Rear Exhaust duration 277.8°
• Intake Lift .550″
• Exhaust Lift .550″

• Front Intake Lobe Center Line 100.0°
• Front Exhaust Lobe Center Line 106.0°
• Rear Intake Lobe Center Line 104.0°
• Rear Exhaust Lobe Center Line 100.5°

• Front Intake Lift at TDC .127″
• Front Exhaust Lift at TDC .232″
• Rear Intake Lift at TDC .099″
• Rear Exhaust Lift at TDC .264″

• Front Overlap 39.9°
• Rear Overlap 41.5°
