Morimoto 6 Pod Output Switch Power Harness

Morimoto 6 Pod Output Switch Power Harness

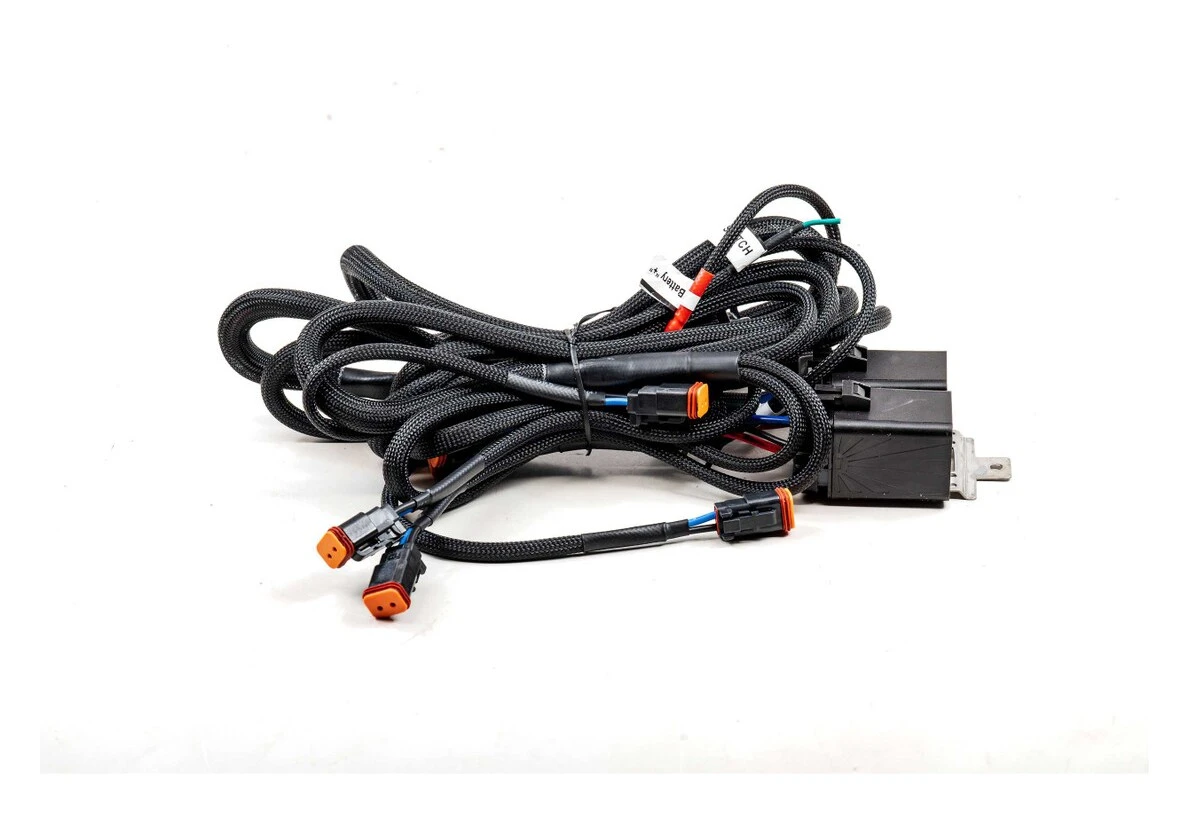

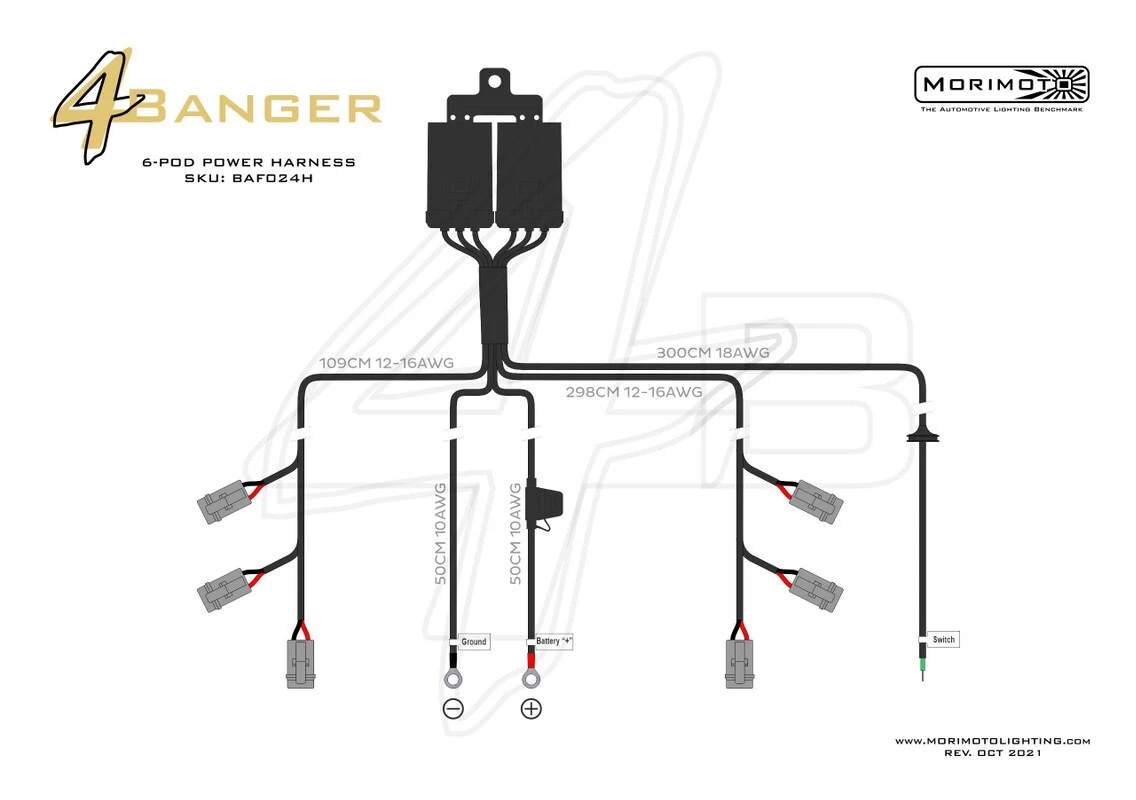

The high quality you have come to know from Morimoto can be seen even in this 6 Pod Power Harness. Not one component of the harness was overlooked for the sake of cost or simplicity. Triple-sealed 4-pin relays with dual-hanger and over-molded inline fuse holder with 40A ATO fuse. The DT06-2S female outputs are designed with dual seals. Stainless steel power and ground terminals to ensure longevity. M-Spec push button switch with Yellow-LED backlight for better visibility. All wiring is properly sized and relays are rated for flicker-free reliable power delivery for up to six off road lights. Every line of the 10 AWG copper wiring is protected with black mesh insulation. Every connector has been over-molded, sealed, or protected with heavy duty heat shrink. The connections on the harness have been laid out to power up to three LED pods on each side of your vehicle. There are six total outputs and includes a positive battery terminal, ground terminal and a switch. The wiring for the in-cabin push button switch has an in-line barrel connector that drastically improves ease of installation. While this harness is a perfect match for the Morimoto 4Banger LED pods you can make good use of it with any other off-road lighting setup that takes a DT-style two-pin input.

Features:

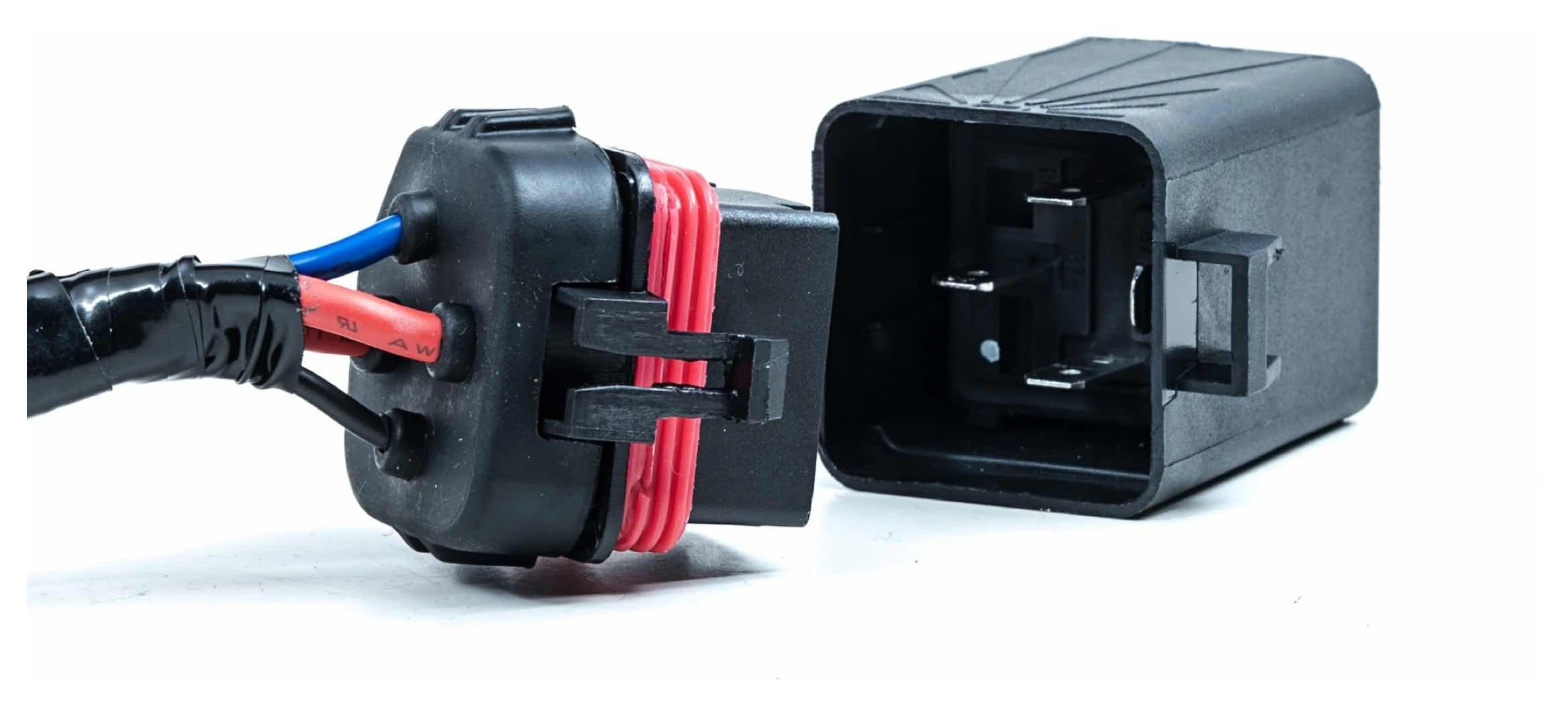

• Two triple sealed 40A M-Spec relay

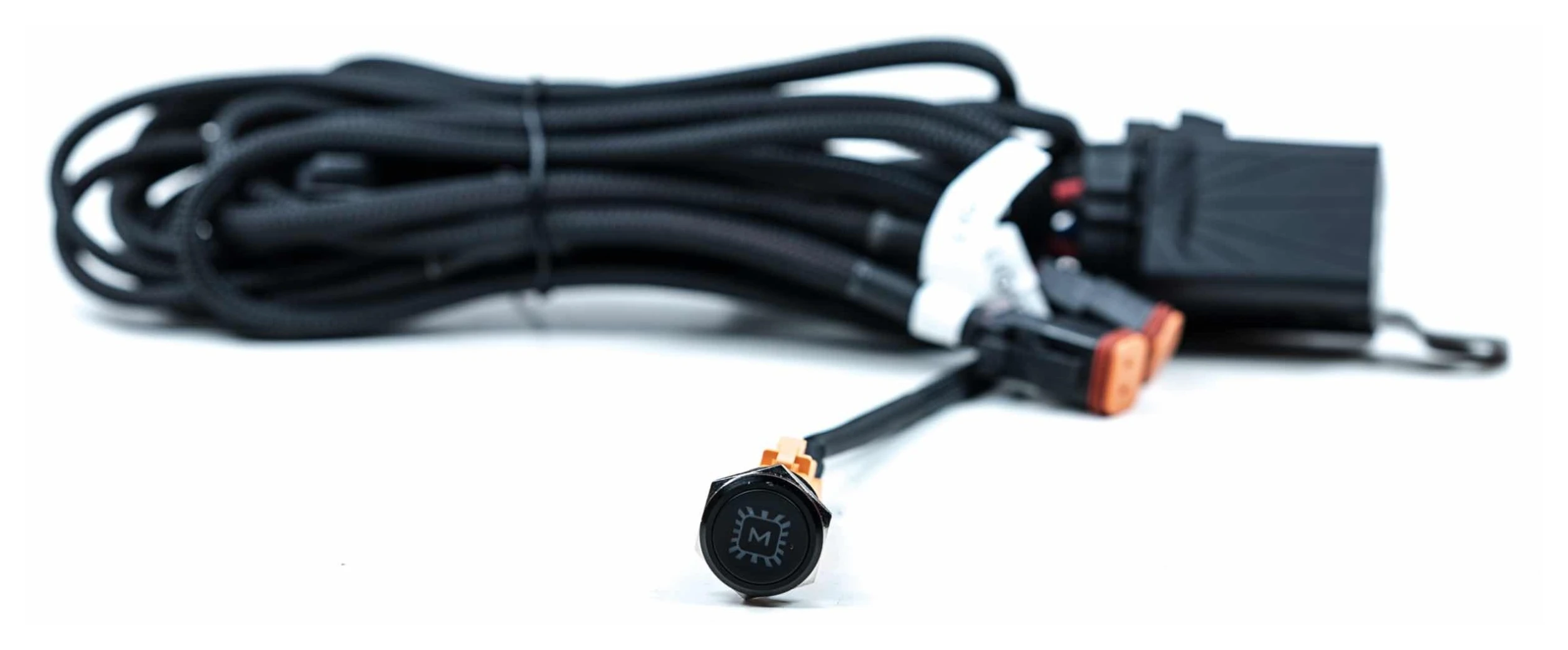

• Switch is M-Spec with yellow backlight

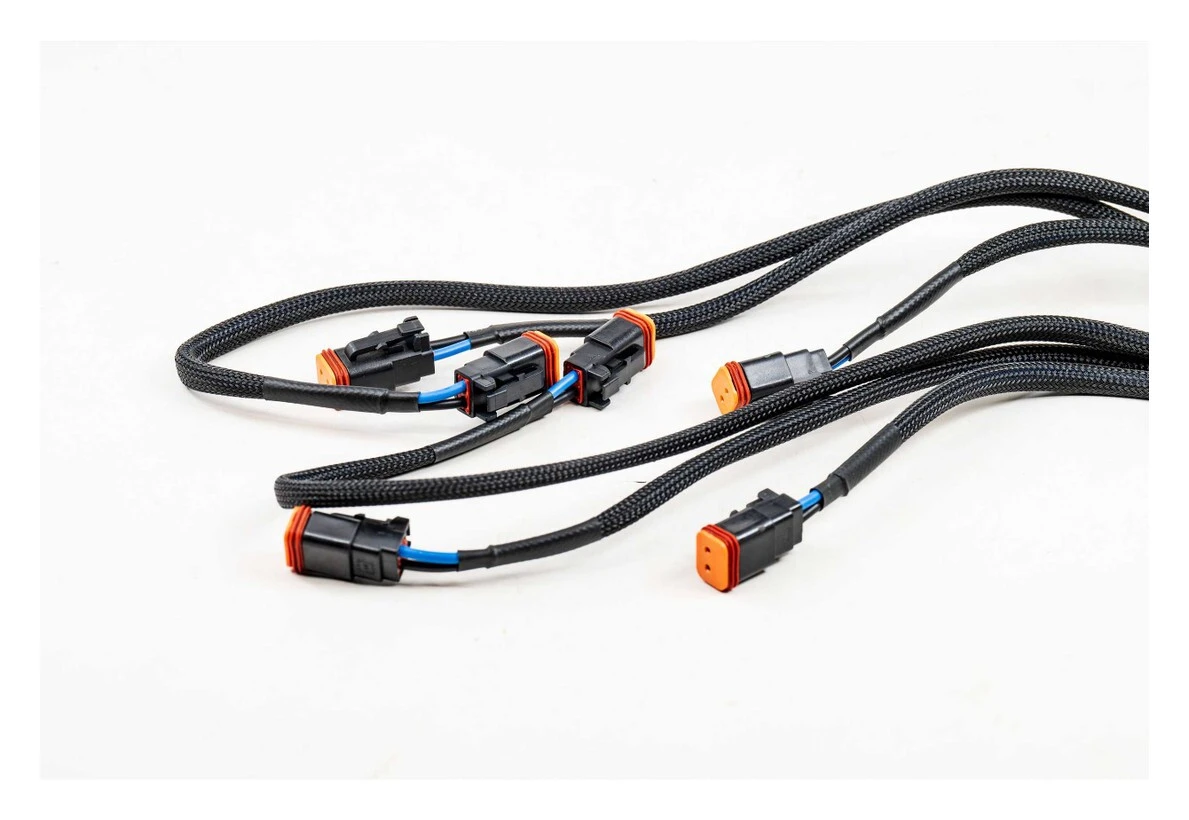

• 6 pod DT06-2 Pin outputs
• Output wiring insulated 12 AWG copper
• Inputs with12V+/- ring terminals
• Input wiring insulated 10 AWG copper
• Stainless steel power and ground terminals
• Powers up to 5A per output
