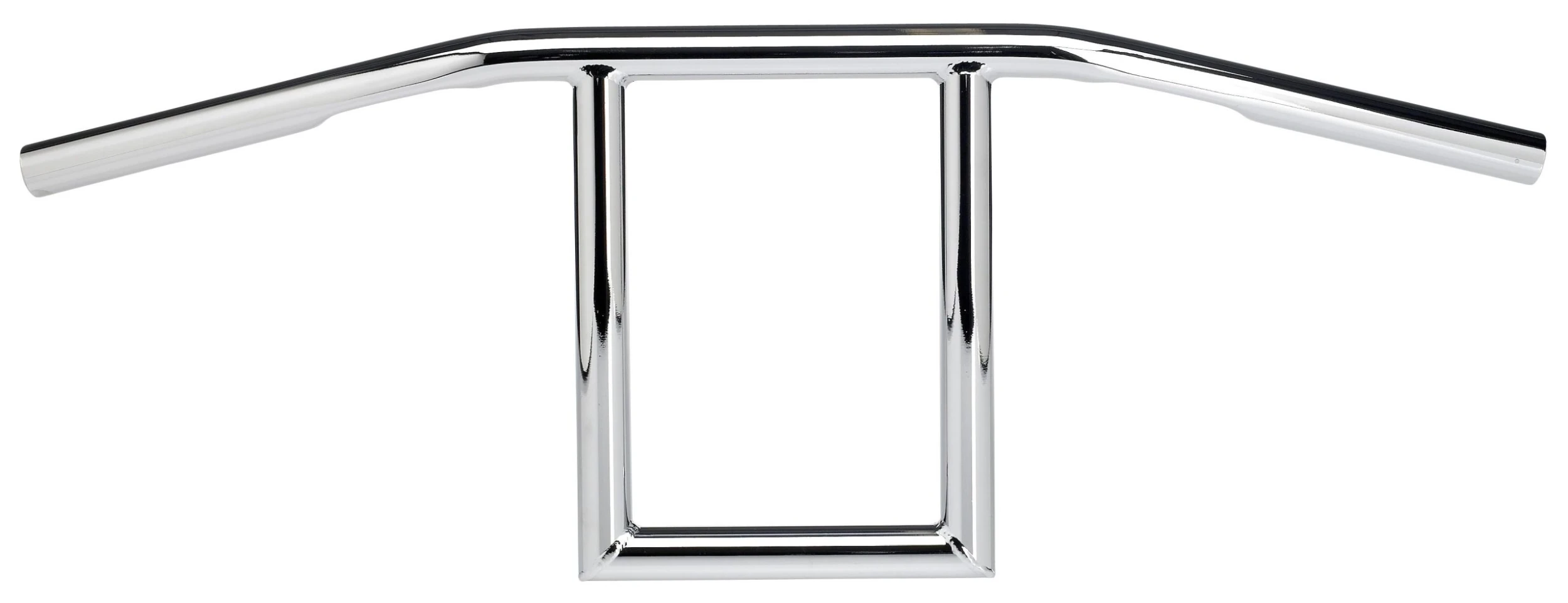

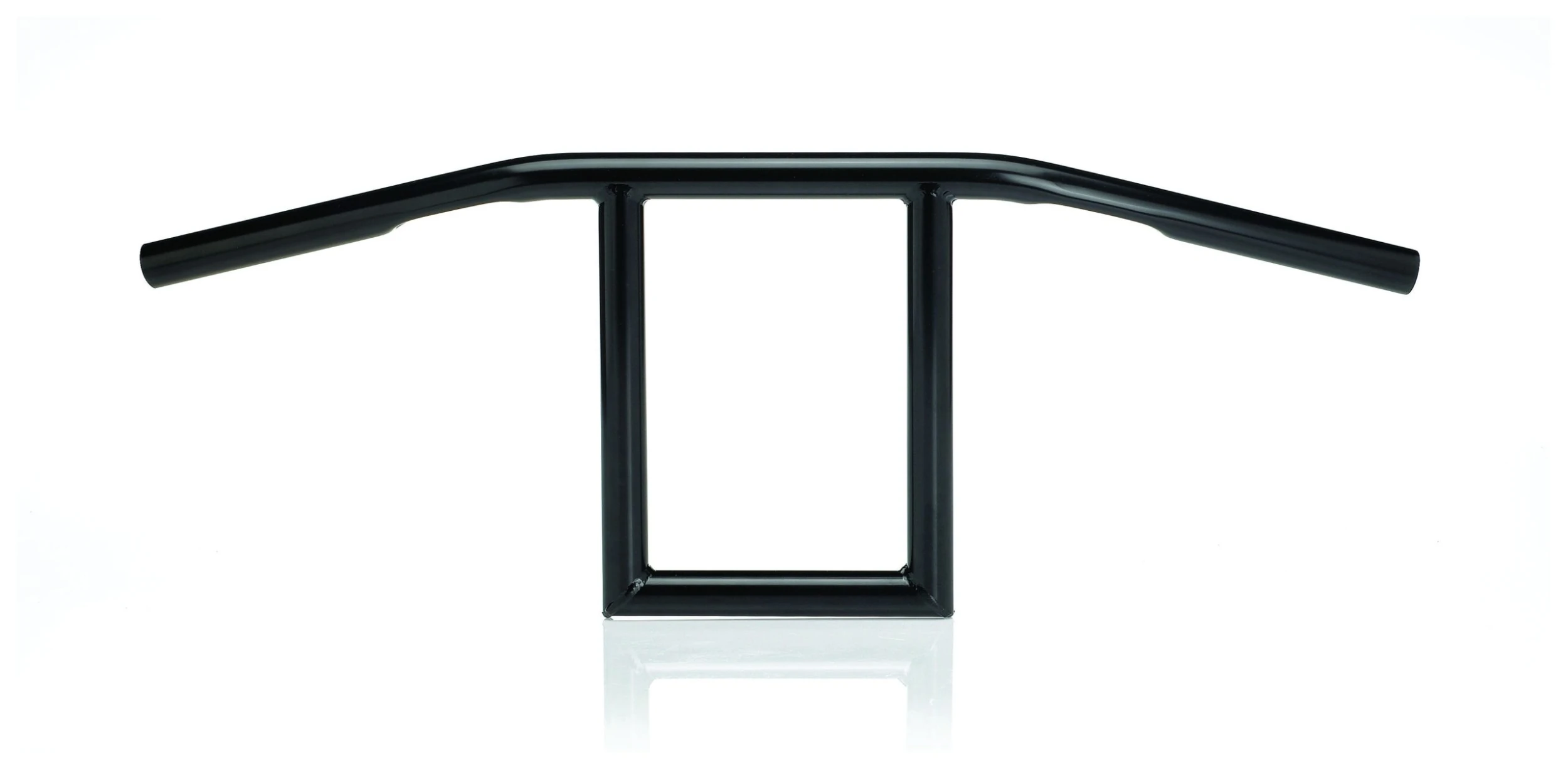

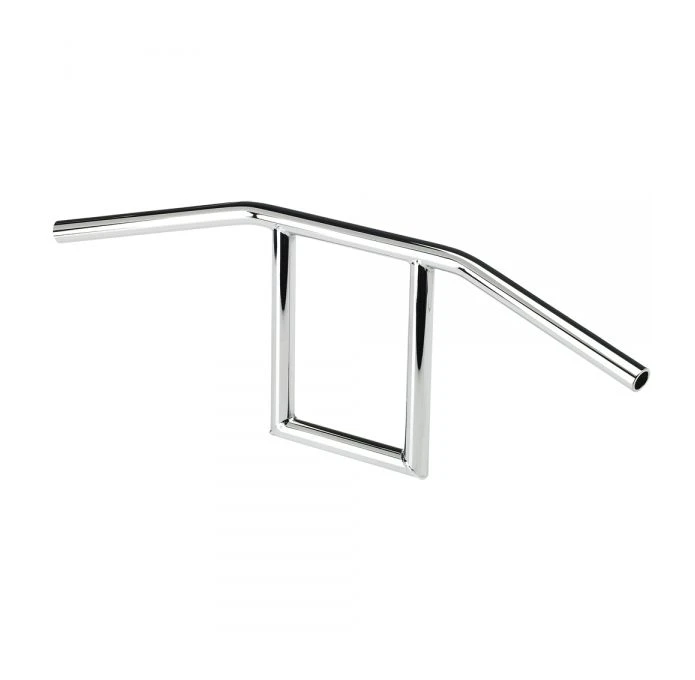

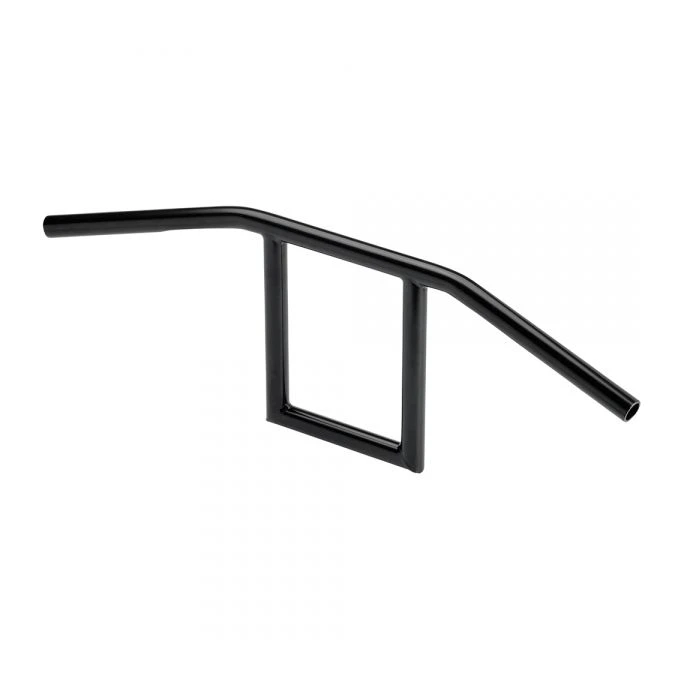

Biltwell Window Handlebars

At 9 inches from center of clamping area to top of T bar, Biltwell Window bars fall into the “tall” category. A mere 10 degrees of back sweep gives these bars a flat T-bar style that works best on motorcycles with stock backbone lengths. Depending on the height of the bars you’re replacing, longer cables and wiring may be required. These bars look great on Big Twin, British and Japanese choppers with stock neck angles and almost any bike with Narrow Glide forks.

Features:

• 1″ O.D. x 0.120” wall seamless 4130 chromoly tubing
• Skinny width for a proper chopper feel
• All bends are created with internal mandrels on a CNC bender to reduce flat spots in the radiuses
• All welded joints are precision mitered and TIG welded
• Bars are not knurled to fit multiple-width risers

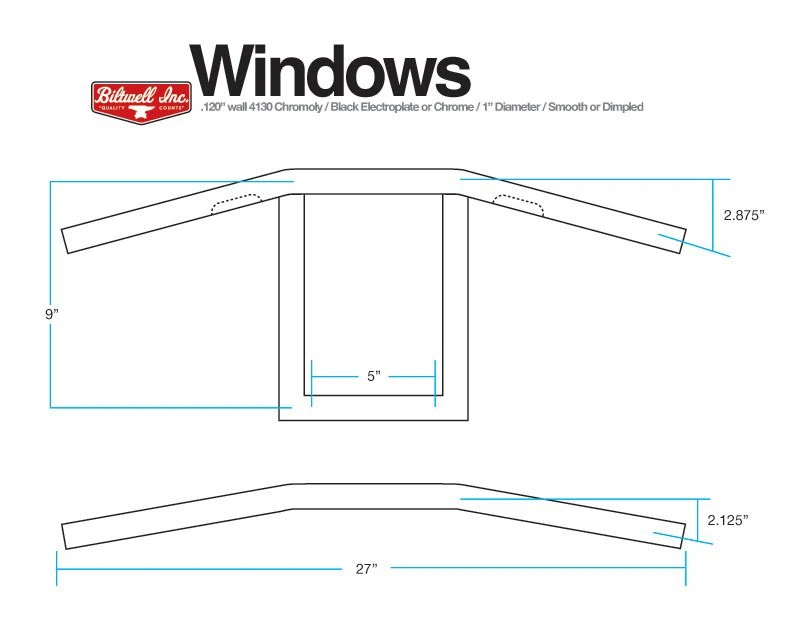

Specs:

• 27″ wide
• 1 1/2″ pullback
• 5″ center width
• 6 3/4″ end rise
